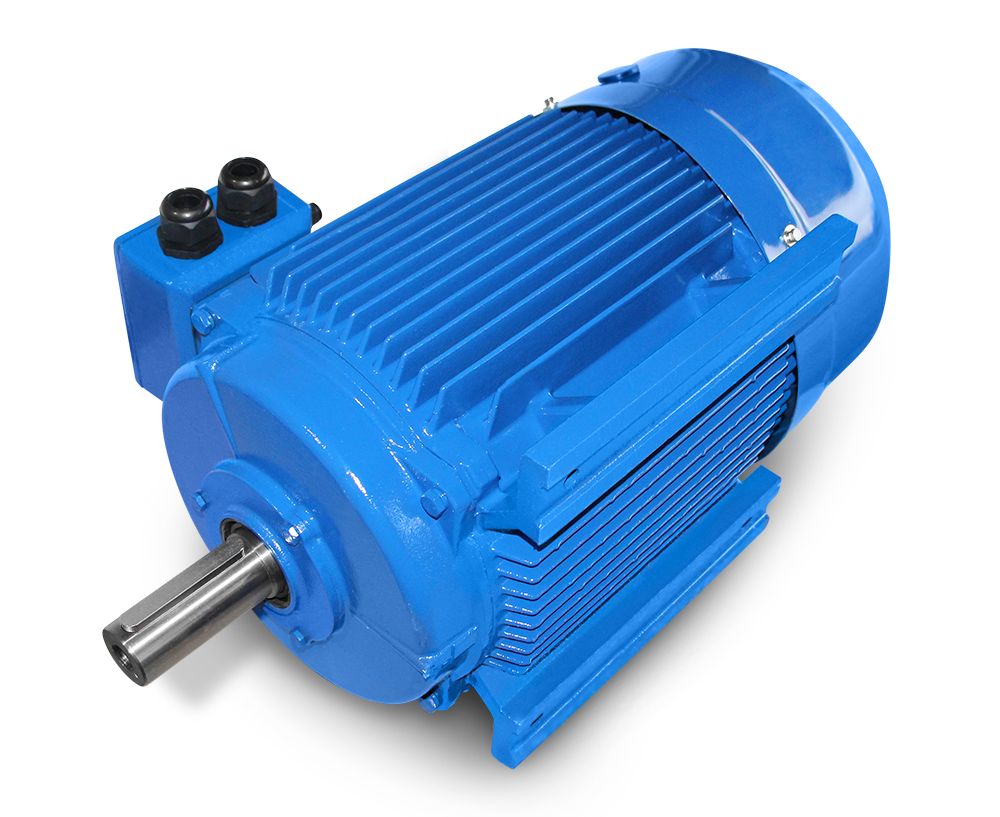

Electric motor M3 160M-11 kW-2pole-B3

€593.05*

% €790.73* (25% saved)

Prices incl. VAT plus shipping costs

Available, delivery time: about 3-4 business days

Product number:

1C20150216A000

Shipping fees:

Article + Packaging

Downloads

Product information "Electric motor M3 160M-11 kW-2pole-B3"

Electro motor, Three-phase motor, Power= 11 kW, Speed= 3000 rpm

Voltage= 3 x 400/690 V-50 Hz, 3 x 460/795 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/60 Hertz.

Efficiency class= IE3, Efficiency= 91,2%, Paint= RAL 5010 (gentian blue), Degree of protection= IP55, Temperature sensor= 3 x PTC thermistors,

Weight= 119,0kg, Operating mode= S1- 100% DC, Terminal box position= top, Housing= Cast iron, Insulation class= F (155°C),

Ball bearing= SKF or equivalent, Cooling= axial fan (Plastic), Motor feet= fixed potted (if present).

The engine mounting is designed for clutch operation. We recommend reinforced Cylindrical roller bearings for belt drives.

The Electric motor is suitable for frequency converter use and for both directions of rotation.

According to VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by qualified

specialist personnel. For modifications or special designs please send inquiry.

All product photos are non-binding examples! Technical changes reserved.

Properties "Electric motor M3 160M-11 kW-2pole-B3"

Efficiency Class:	IE 3
Performance:	11 kW
Rotation speed:	3000 rpm / 2 polig
Shaft diameter:	42 mm
Type of construction:	B3

Accesories

PTC thermistor tripping device

PTC tripping device, motor protection, PTC evaluation AC 50/60Hz 115/120V-230/240V +-10% 3VA, IP20,1-9 PTC sensors according to DIN 44081, DIN 44082 in seriesContact: AC240V 2.5A C300- Dimensions: 68 x 33 x 53 mm (L x W x H) - Adapter for 35 mm standard rail- 2 holes for screw fastening UL File No. E75899

€48.59*

Details

Frequency Inverter LS 0110-IS7-4-SPF

Frequency inverter, VFD's, 11kW, 380V- 480V, 24A, braking resistor, EMV-Filter, IP54, including operation panel Constant torque / variable torque for normal load and heavy duty use V/F and V/F PG control, sensorless vector control, vector control with selectable sensor 150 MIPS high-Speed DSP Excellent performance and advanced features: Droop-control (torque-control) KEB protection (Kinetic Energy Buffering) Ride through protection (Delay of underVoltage release) Load trip protection (Underload tripping) PMSM function (Permanent Magnet Synchronous Motor) vector control without feedback Power braking & flux braking function Automatic setting: auto-tuning of static engine parameters Easy to use: Start simple mode, user and macro group multifunctional panel Sensorless control and parameter setting of the second motor Available: IP54 / UL Type 12 protection optional (0.75 ~ 22kW [1 ~ 30PS]) Integrated communication RS485 (LS Bus / Modbus RTU) Integrated chopper for dynamic braking (0.75~22kW[1~30PS]) Integrated EMC filters and optional DC reactor: EMC-Filter (0.75~22kW[1~30PS]) / DC-Reaktor (0.75~160kW[1~215PS]) Wide Graphic LCD panel (6 different languages) PLC expansion card optional (programmable logic control card) Master-K platform (max. 14 inputs and max. 7 outputs) Expansion Card Input / Output (optional) max. 11 inputs and max. 6 outputs Optional communication Profibus-DP, DeviceNet, Modbus TCP, Rnet, LonWorks, CANopen, EtherNet/IP Software (View Drive) for monitoring and parameterization with the PC

€1,618.63*

Details

1-JS-IP66-11KW-15KW-18,5KW-22KW-Frequency-Inverter

Frequency Inverter LS 0110S100-4EXFNS

Frequency inverter, 11.0 kW, 380V- 400- 420V- 480V, IP66, built- in LED keypad, EMC filter (C3) 0.1-400Hz frequency output 1-15kHz carrier frequency Constant torque / Variable torque dual rating Selectable V/f and sensorless vector control Powerful torque at overall Speed range Fault history: Last 5 faults High performances & functions: KEB (Kinetic Energy Buffering) protection, Ride Through (LV Trip Delay) protection, Under Load Trip protection, Power brake & Flux Brake function, Static motor parameter Auto-tuning Enhanced process PID control with Sleep & Wake-up functions Low leakage PWM algorism Available IP66 enclosure (0.4-22kW) as built-in option Built-in Dynamic braking transistor (0.75-22kW) Available EMC Filter & DC Reactor as built-in option Wide graphic LCD keypad (30-75kW) Remote control using external wide graphic LCD keypad Cooling fan On/Off control & Easy change Extension I/O boards (Optional): 11 max. inputs & 6 max outputs 0-10Vdc / -10-+10Vdc analog input Selectable PNP/NPN input signal Built-in RS485 (LS Bus / Modbus RTU) communication Communication boards (Optional): Profibus-DP, Ethernet, EtherCAT, Profinet, CANopen Monitoring & commissioning PC based software tool (Drive View)

€1,433.99*

Details

Thermal sensor opener NAT 130 ° C triple up to BG315

PTO temperature monitoring of the motor winding

€105.34*

Details

Rain cover BG160

Fan cover with rain protection roof for Electric motors in size 160. When ordering with an Electric motor, the rain protection cover is mounted directly on the JS Electric motor.

€124.94*

Details

Heating tape 160-225

Heating band for a standstill heater for electric motors of size 160-180-200-225 The standstill heater is used to prevent the formation of condensation during breaks in operation.

€187.16*

Details

Cylindrical roller bearing BG160

Cylindrical roller bearing, A-side Reinforced bearing for electric motors of size 160. To accommodate increased radial loads. Minimum load of 20% required!

€107.11*

Details

Frequenzumrichter LS 0110S100-4EOFNS

Frequency inverter, VFD, 11kW, 380V- 400V- 420V- 480V, IP20, built- in LED keypad, EMC filter (C3) 0.1-400Hz frequency output 1-15kHz carrier frequency Constant torque / Variable torque dual rating Selectable V/f and sensorless vector control Powerful torque at overall Speed range Fault history: Last 5 faults High performances & functions: KEB (Kinetic Energy Buffering) protection, Ride Through (LV Trip Delay) protection, Under Load Trip protection,Power brake & Flux Brake function, Static motor parameter Auto-tuning Enhanced process PID control with Sleep & Wake-up functions Low leakage PWM algorism Available IP66 enclosure (0.4-22kW) as built-in option Built-in Dynamic braking transistor (0.75-22kW) Available EMC Filter & DC Reactor as built-in option Wide graphic LCD keypad (30-75kW) Remote control using external wide graphic LCD keypad Cooling fan On/Off control & Easy change Extension I/O boards (Optional): 11 max. inputs & 6 max outputs 0-10Vdc / -10-+10Vdc analog input Selectable PNP/NPN input signal Built-in RS485 (LS Bus / Modbus RTU) communication Communication boards (Optional): Profibus-DP, Ethernet, EtherCAT, Profinet, CANopen Monitoring & commissioning PC based software tool (Drive View)

€830.36*

Details
